Grid 7Ah Battery 500C Ebike Conversion Kit

Grid 7Ah Battery 500C Display 250W Mid-Drive E-Bike Conversion Kit

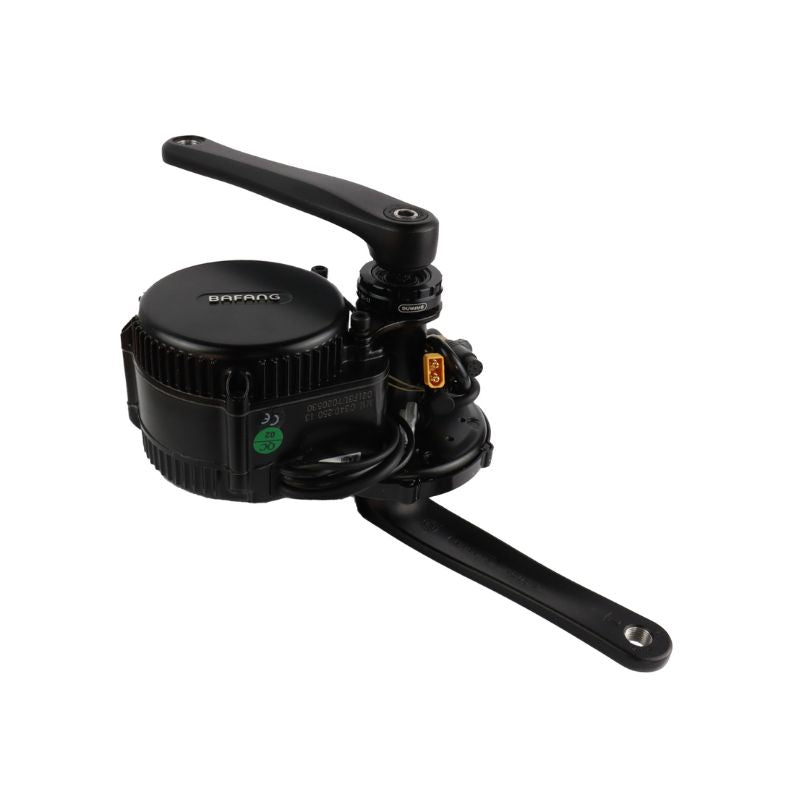

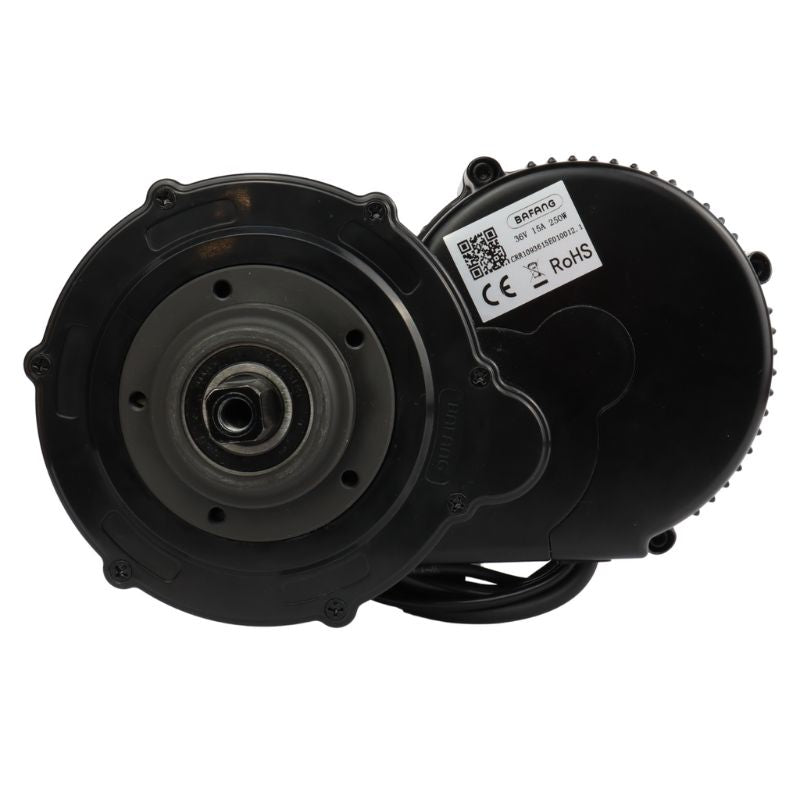

This Bafang BBS01B 36V 250W Mid-Drive Electric Bike Conversion Kit is the perfect choice for a flawless yet cost-effective Electric Bike. Bafang is renowned for producing motors that are regarded as the very best in the conversion world. Their motors are waterproof for all riding conditions, internally lubricated with sealed casings, and contain a nylon gear for a silent, yet exquisite ride every time! The 250w motor is best suited for U.K. use as this is the legal riding limit. The integrated speed sensor and pedal assistance recognises and aids manual output to boost your ride by up to 15mph. Five pedal assistance modes are available, so you can conquer the toughest of rides.

This motor weighs approximately 4kg and is designed to fit bottom brackets with a length between 68mm - 73mm (2.68 - 2.87”). If you have a Fat Bike, with a 100mm - 120mm bottom bracket length, get in touch with us, as you will require an axle extension. If you're a trike owner, please reach out to us before making a purchase. We specialise in crafting custom wiring looms with extended, braided cables tailored specifically for trikes, ensuring cable protection along the adjustable boom. Your trike's unique needs deserve special attention, and we're here to provide it! The inner diameter of the bottom bracket should be no less than 33.5mm. If you own a carbon bike or have a press-fit bottom bracket, this motor may not be suitable

More information can be found about bike compatibility here - Bike Information

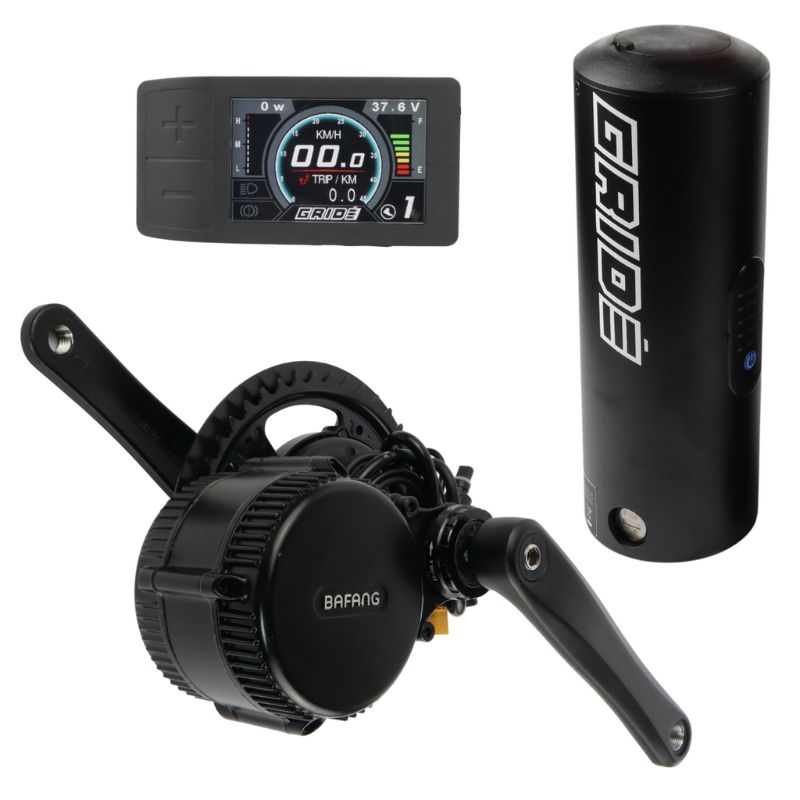

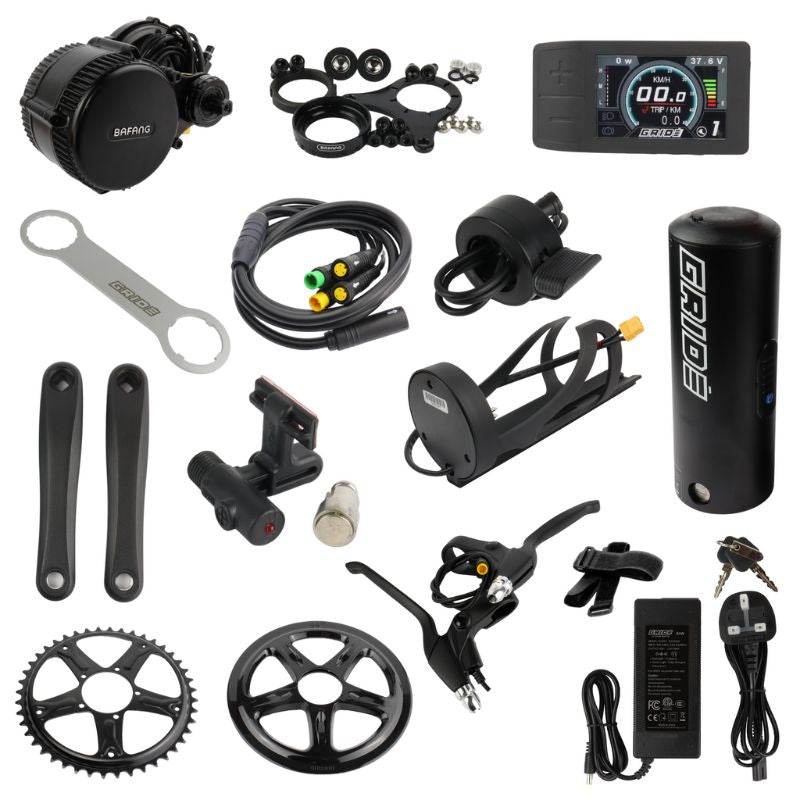

Features

• Bafang 36V 250W Mid Drive Motor (With XT60 Battery Connector)
• GRIDE 7Ah Li-Ion Battery (With XT60 Battery Connector)
• Battery Frame Mount, Velcro Cable Strap, Keys, 2A Power Adaptor (UK Plug)
• 750C LCD Display
• Thumb Throttle

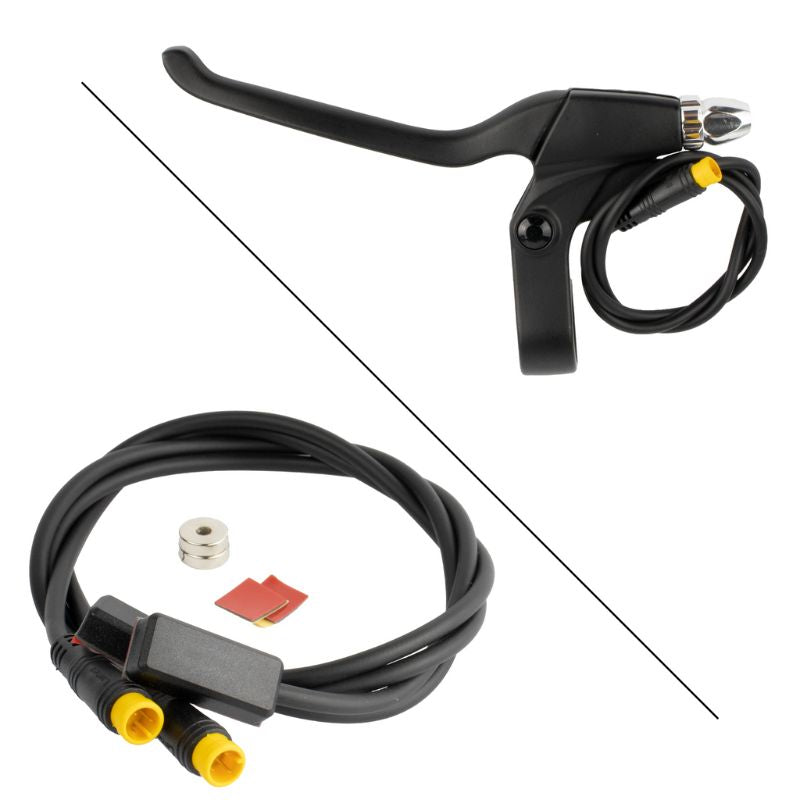

• E-Brakes (Can Upgrade to Brake Sensors for Either Hydraulic Brakes or Integrated Shifters)
• Speed Sensor & Magnet
• EB-BUS (1T4) Cable
• Cranks
• Chainring
• Chainguard
• Bottom Bracket Installation Tool
• All Mounting Hardware (Inc. 73mm BB Spacer for Larger Bottom Brackets).

7Ah Battery:

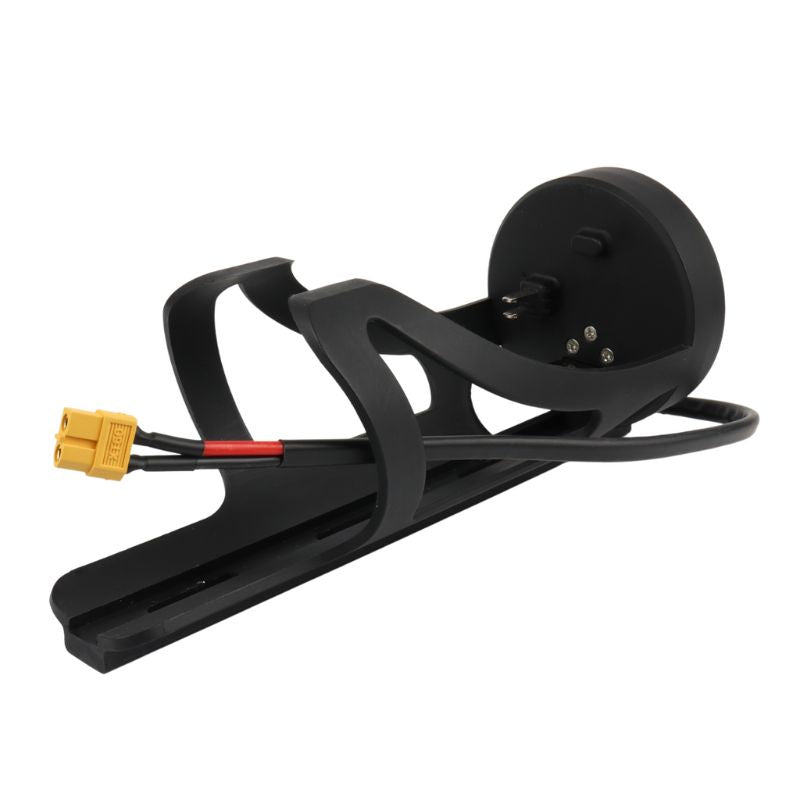

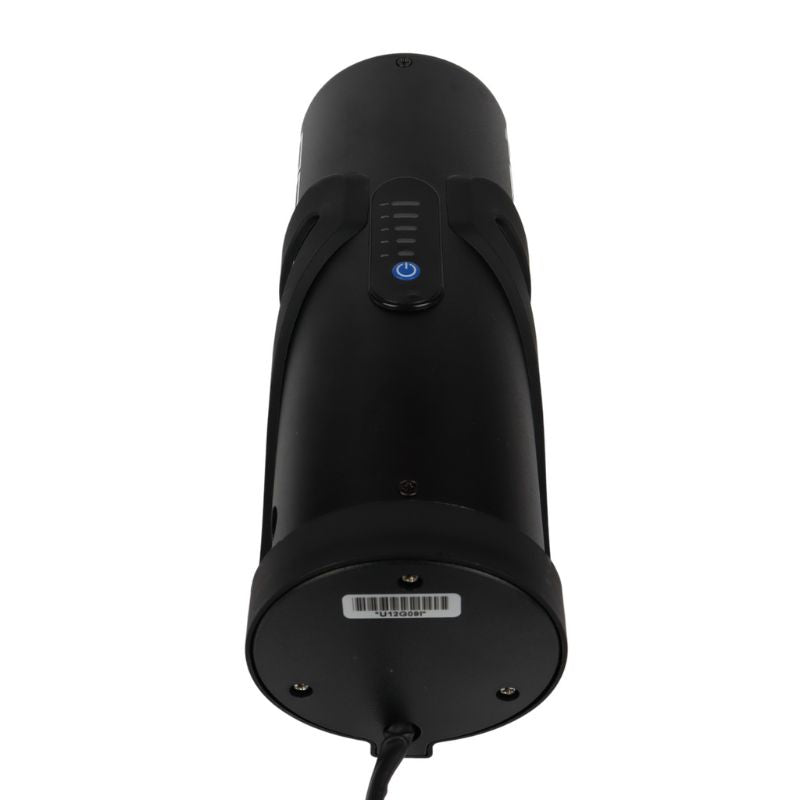

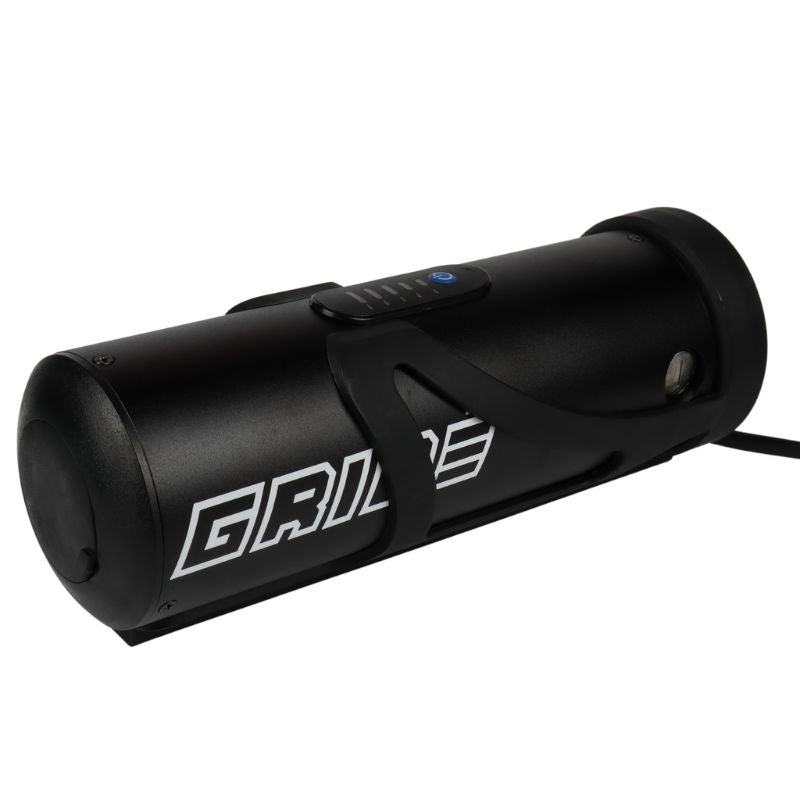

Our batteries guarantee reliability and sustained performance in all conditions to ensure you get the most efficient ride every time. This battery will cover an approximate 20-mile range and has a display to show battery percentage. Each battery is complete with a USB socket for charging devices on the go. The battery mount is installed onto the bike using the bottle cage mounting holes already located on the frame's downtube. The battery is then locked and secured into the mount using the provided keys.

Battery Specification:
Rating Capacity: 7Ah
Energy: 250Wh
Rated Voltage: 36V
Mileage Range: Approximately 20 miles
Battery Weight: 3kg
Battery Dimensions: 240mm Length x 80mm Width
Charging Cut-Off Voltage: 42V
Discharging Cut-Off Voltage: 28V
Max Charging Current: 2A
Charging Temperature: 0°C – 45°C
Discharging Temperature: -20°C – 55°C
